PyTorch Workflow Fundamentals

In this chapter some of the most fundamental parts in building an Machine Learning model is being gone through. All the way from splitting the data into Training and Testing sets to saving the trained model.

The workflow that this model entails is one with a ground thruth, meaning that we actually create the data from a linear regression formula. But even though we actually know the parameters that our model will find in the data will this still be a good first model to build.

Exercise 1

Create a straight line dataset using the linear regression formula (weight * X + bias). Set weight to 0.3 and bias to 0.9 and split the data into 80% training and 20% testing and plot the data

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
def e1(self):
    """First exercise of Chapter 1

    In this exercise will data be created using the linear
    regression formula. The data will be split in training and
    testing data (80/20 split) and plot the training and testing
    data for visualization
    """
    self.logger.info("--- Running Exercise 1 ---")
    bias = 0.9
    weight = 0.3
    start = 0
    end = 1
    step = 0.005

    X = torch.arange(start, end, step).unsqueeze(dim=1)
    y = weight * X + bias

    split = int(0.8 * len(X))

    self.X_train = X[:split]
    self.y_train = y[:split]
    self.X_test = X[split:]
    self.y_test = y[split:]

    self.logger.info("Plotting training and testing data\n")
    plot_predictions(self.X_train,
                     self.y_train,
                     self.X_test,
                     self.y_test,
                     figname=self.assetsdir / "ch1e1.png")

I created the data by utilizing the torch.arange() function and then using the linear regression formula to create the outputs seen in lines 16 and 17. I then split the data in by finding index of 80% of the data and then using slicing to order the data into training, and testing sets. This can be seen in lines 19-24. I then created a plotting function to plot this data, which also could be used to plot predictions which is when the model is being used on testing data. Seen in the figure below is only the training and testing data

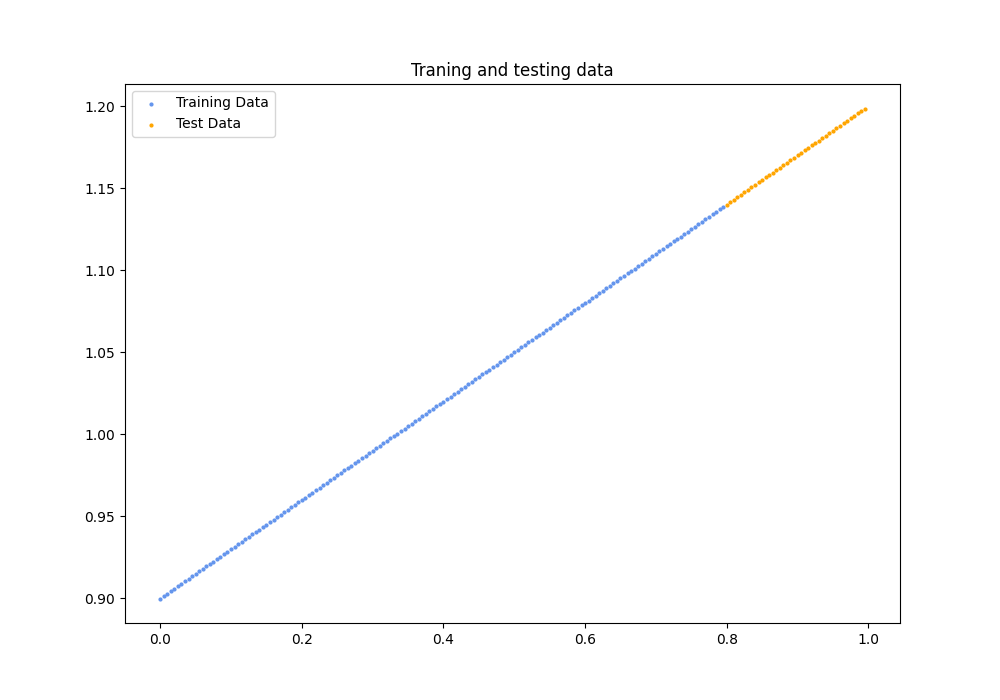

Training and testing data

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
def plot_predictions(train_data,
                     train_labels,
                     test_data,
                     test_labels,
                     figname,
                     predictions=None):

    gs = GridSpec(1, 1)
    fig = plt.figure(figsize=(10, 7))
    ax = fig.add_subplot(gs[0, 0])
    ax.set_title("Traning and testing data")
    ax.scatter(train_data, train_labels, c="dimgray", s=4, label="Training Data")
    ax.scatter(test_data, test_labels, c="orange",  s=4, label="Test Data")

    if predictions is not None:
        ax.scatter(test_data,
                   predictions,
                   c="tomato",
                   s=4,
                   label="Predictions")

    ax.legend()
    fig.savefig(figname, transparent=False)
    plt.close()

Exercise 2

Build a PyTorch model by subclassing nn.Module. In the model should parameters be initialized using the nn.Parameters used, setting it to random values. One parameter for the weight for the bias. a forward() model should also be created to compute the linear regression. Also make an instance of the model and print the current parameters on the untrained model.

The way of doing this is by creating a new class that inherits from the nn.Module class. The nn.Module class contains more or less every building block necessary for any kind of Neural Net. Below is my implementation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
class LinearRegressionModel(nn.Module):
    def __init__(self):
        super().__init__()
        torch.random.manual_seed(42)
        self.bias = nn.Parameter(torch.randn(1,
                                             requires_grad=True,
                                             dtype=torch.float))
        self.weight = nn.Parameter(torch.randn(1,
                                               requires_grad=True,
                                               dtype=torch.float))

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        return self.weight * x + self.bias

As instructed I created parameters for the bias and the weight using the nn.Parameters class, and setting those parameters to random values with torch.randn. Seen in the creation of these, I set the argument requires_grad to True. This is needed if gradient descent is used to find these values in the training, which is the most standard way of solving a problem of this kind.

I also implemented a forward() method for this model, which always has to be done when inheriting from nn.Module. This method is used to propagate through the neural net and will do the predictions from the input data.

To initialize this model I just call this model, and to print out the current parameters is the method state_dict() called on the newly initialized model object, as seen below

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
def e2(self):
    """Second exercise of Chapter 1

    In this we shall construct a linear regression model with
    randomized parameters. We should also construct a forward
    method that gives the prediction from the input and
    parameters. We should the initiate this model and print out
    the current parameters.
    """
    self.logger.info("--- Running Exercise 2 ---")
    self.logger.info("Initiating the model")
    self.model = LinearRegressionModel()
    params = self.model.state_dict()
    self.logger.info(f"Current parameters:\n {params}\n")

Exercise 3

Create a loss function and optimizer using nn.L1Loss() and torch.optim.SGD(params, lr) respectively. Set the learning rate of the optimizer to be 0.01 and the parameters to optimize should be the model parameters from the model you created in 2. Write a training loop to perform the appropriate training steps for 300 epochs. The training loop should test the model on the test dataset every 20 epochs.

The loss function and the optimizer is two of the most fundamental things there is when it comes to machine learning.

  • The loss function dictates how the loss is measured, meaning how much the predicted data deviates from the expected output. This function will depend on what type of problem you are trying to solve. But in this exercise I was instructed to use the nn.L1Loss() function, which actually measures the mean absolute error.

  • The optimizer is a function that tells the model how the parameters should be updated. These functions also take the very important hyperparameter lr, which is the learning rate. This hyperparameter is very important because it tells the model how aggressively the model should update the models parameters. The optimizer we were instructed to use here implements stochastic gradient descent and is found in the torch.optim module.

The training loop typically follows the below pattern, and in the code snippet below is my implementation

  1. forward pass (moving the input data through the network) to give a output on the current parameters
  2. calculate the loss with the loss function
  3. optimizer zero grad, resets the gradients of the optimized tensor.
  4. back propagation moves the data through the network backwards (calculate the loss gradients)
  5. optimizer step, refining the parameters (gradient descent)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
    def e3(self, epochs):
        """Third exercise of Chapter 1

        In this exercise we are supposed to develop the training
        loop and also print out how the loss progresses

        Args:
            epochs (int): Number of times the model should fun through the NN
        """
        self.logger.info("--- Running Exercise 3 ---")
        self.logger.info("Creating loss and optimizer functions")
        self.loss = nn.L1Loss()
        self.optimizer = torch.optim.SGD(
            params=self.model.parameters(),
            lr=0.01
        )

        self.epochs = epochs
        self.logger.info("Entering training loop")

        # training loop
        for epoch in range(self.epochs):

            # set model into training mode
            self.model.train()

            # forward pass through network
            y_pred = self.model(self.X_train)

            # calculate loss
            loss = self.loss(y_pred, self.y_train)

            # set optimizer to zero gradient
            self.optimizer.zero_grad()

            # back propagate
            loss.backward()

            # step the optimizer
            self.optimizer.step()

            # enter testing mode
            self.model.eval()
            with torch.inference_mode():
                test_pred = self.model(self.X_test)
                test_loss = self.loss(test_pred, self.y_test)

                if epoch % 20 == 0:
                    print(f"Epoch: {epoch} | Train loss: {loss} | Test loss: {test_loss}")

        self.logger.info("Training done\n")

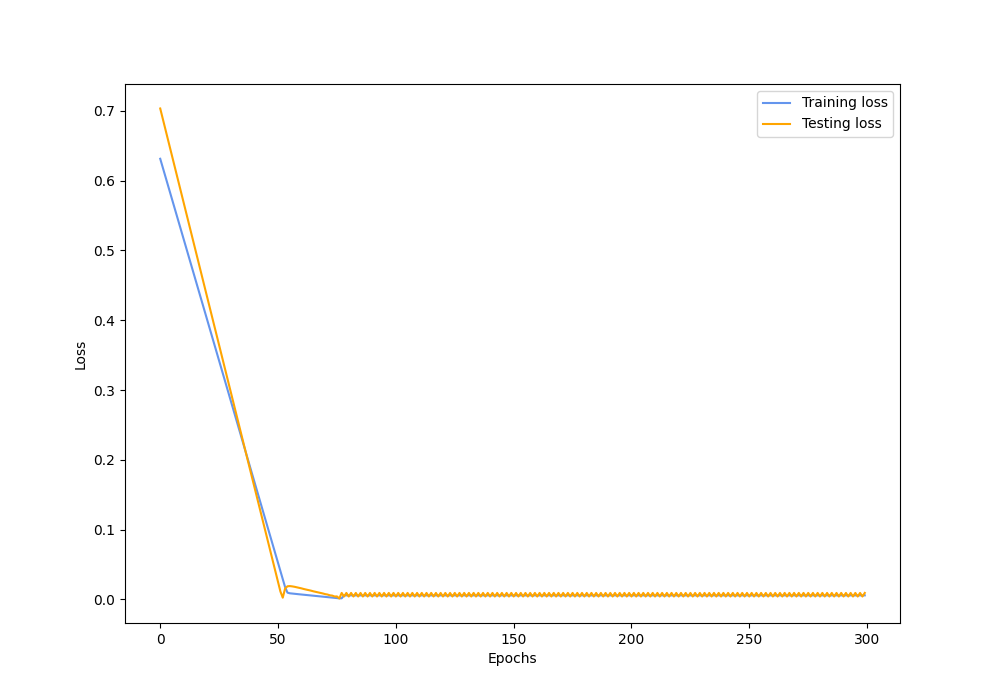

Below is a figure illustrating how the loss evolves during the training loop

Loss curves

Exercise 4

Make predictions with the trained model on the test data. Visualize these predictions against the original training and testing data (note: you may need to make sure the predictions are not on the GPU if you want to use non-CUDA-enabled libraries such as matplotlib to plot).

This exercise is all about visualizing how well our model predicts the testing data. To get the predictions I first put the model in evaluate mode with the method eval() and do the prediction in inference mode with torch.inference_mode(). This can be seen in the code snippet below, and the visualization of the training, testing and predicted data can be seen in the figure below

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
def e4(self):
    self.logger.info("--- Running Exercise 4 ---")
    self.model.eval()
    with torch.inference_mode():
        predictions = self.model(self.X_test)

    self.logger.info("Plotting the predictions\n")
    plot_predictions(
        train_data=self.X_train,
        train_labels=self.y_train,
        test_data=self.X_test,
        test_labels=self.y_test,
        figname=self.assetsdir / "ch1e4.png",
        predictions=predictions
    )

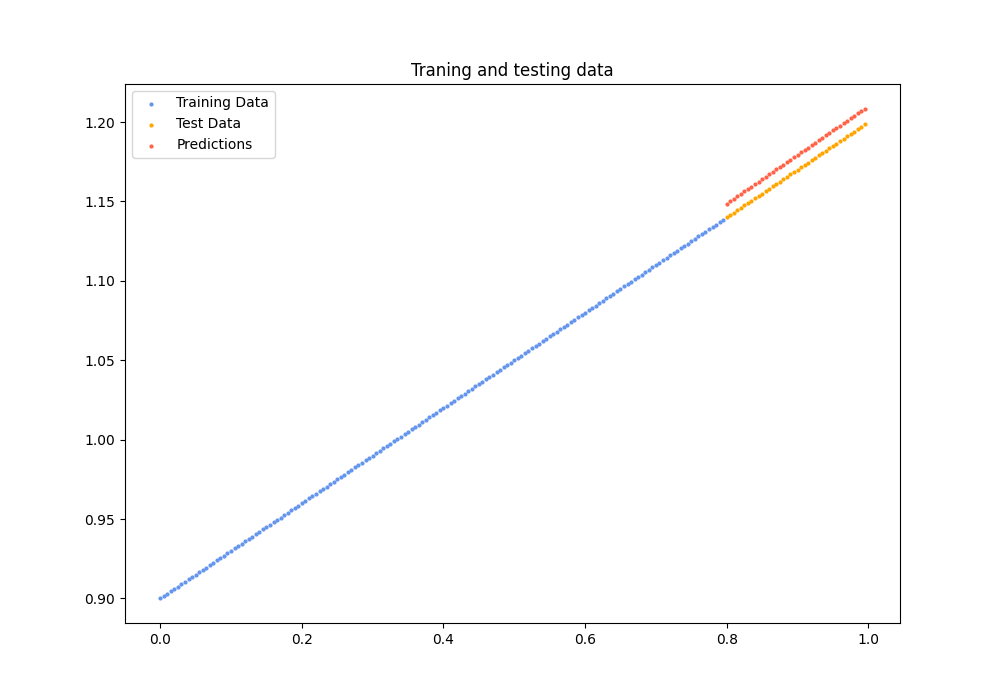

Training, testing and predicted data

Exercise 5

Save your trained model's state_dict() to file. Create a new instance of your model class you made in 2. and load in the state_dict() you just saved to it. Perform predictions on your test data with the loaded model and confirm they match the original model predictions from 4.

To save the trained model I created a separate function as can be seen below

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
def save_model(model, name):
    modeldir = Path("models")
    basedir = Path(__file__)
    savedir = basedir.parent / modeldir

    if not savedir.exists():
        savedir.mkdir()

    torch.save(obj=model.state_dict(),
               f=savedir / name)

Here I pass in the model as one of the argument and a second argument, name which will be under what name the models parameters will be saved. I also create a directory called models/ where the model will be saved. I also created a function to load models as seen in the code snippet below.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
def load_model(model, name):
    modeldir = Path("models")
    basedir = Path(__file__)
    savedir = basedir.parent / modeldir
    modelfile = savedir / name

    if modelfile.exists():
        model.load_state_dict(torch.load(modelfile))

    return model
In order to load a model you have to create an instance of the LinearRegressionModel and pass it in as one of the arguments and also the name of the model you want to load. In the code snippet below and the figure below depicts the training data, testing data, predictions from the model trained and predictions from the model loaded.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
def e5(self, name: str):
    """Fifth exercise in Chapter 1

    In this exercise we are saving and loading
    our trained model. We are also supposed to ensure
    that our loaded model is giving the same predictions
    as the model we saved

    Args:
        name: name of the model to be saved and loaded.
            Should end with .pth
    """
    self.logger.info("--- Running Exercise 5 ---")

    # save model
    save_model(model=self.model, name=name)
    self.logger.info(f"Saved {self.model} as {name}")

    # initiate new model
    model = LinearRegressionModel()
    self.logger.info(f"Current parameters of newly loaded model:\n{model.state_dict()}")
    self.logger.info(f"Loading model {name}")

    # load model
    model_loaded = load_model(model, name)
    self.logger.info(f"Current parameters of loaded model:\n{model_loaded.state_dict()}")

    # initiate figure object
    fig = plt.figure(figsize=(10, 7))
    gs = GridSpec(1, 1)

    # initiate matplotlib axis and set title
    ax = fig.add_subplot(gs[0, 0])
    ax.set_title("Training, testing data with predictions from trained and loaded model")

    # plot training and testing data
    ax.scatter(self.X_train, self.y_train, c="dimgray", s=4, label="Training Data")
    ax.scatter(self.X_test, self.y_test, c="orange", s=4, label="Testing Data")

    # put models in evaluation mode
    self.model.eval()
    model_loaded.eval()

    # get predictions
    with torch.inference_mode():
        preds = self.model(self.X_test)
        preds_loaded = model_loaded(self.X_test)

    # plot predictions
    self.logger.info("Plotting")
    ax.scatter(self.X_test, preds, c="tomato", s=4, label="Predictions")
    ax.plot(self.X_test, preds, label="Predictions from loaded model", linestyle="-.")
    ax.legend()

    # save figure and close figure
    fig.savefig(self.assetsdir / "ch1e5.png")
    plt.close()

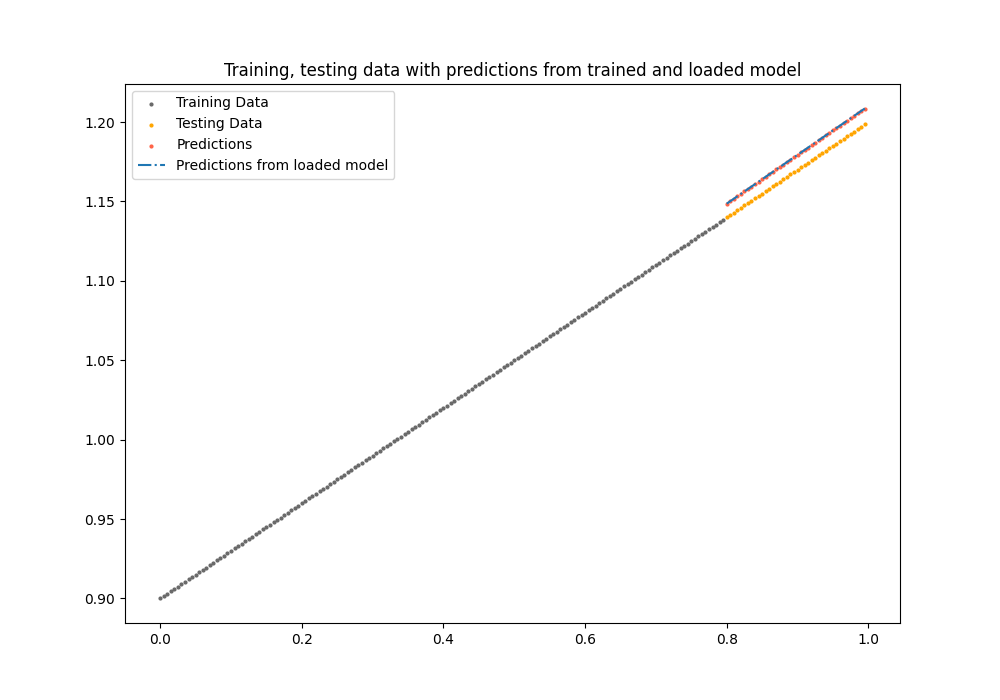

loaded model predictions
